2.1 — Data 101 & Descriptive Statistics

# 2.1 — Data 101 & Descriptive Statistics
## ECON 480 • Econometrics • Fall 2021
### Ryan Safner<br> Assistant Professor of Economics <br> <a href="mailto:safner@hood.edu"><i class="fa fa-paper-plane fa-fw"></i>safner@hood.edu</a> <br> <a href="https://github.com/ryansafner/metricsF21"><i class="fa fa-github fa-fw"></i>ryansafner/metricsF21</a><br> <a href="https://metricsF21.classes.ryansafner.com"> <i class="fa fa-globe fa-fw"></i>metricsF21.classes.ryansafner.com</a><br>

---

# Outline

## [The Two Big Problems with Data](#3)
## [Data 101](#10)
## [Descriptive Statistics](#31)
## [Measures of Center](#39)
## [Measures of Dispersion](#59)
---

# The Two Big Problems with Data

---

# Two Big Problems with Data

- We want to use econometrics to .hi[identify] causal relationships and make .hi[inferences] about them

1. Problem for .hi[identification]: .hi-purple[endogeneity]

2. Problem for .hi[inference]: .hi-purple[randomness]

]

---

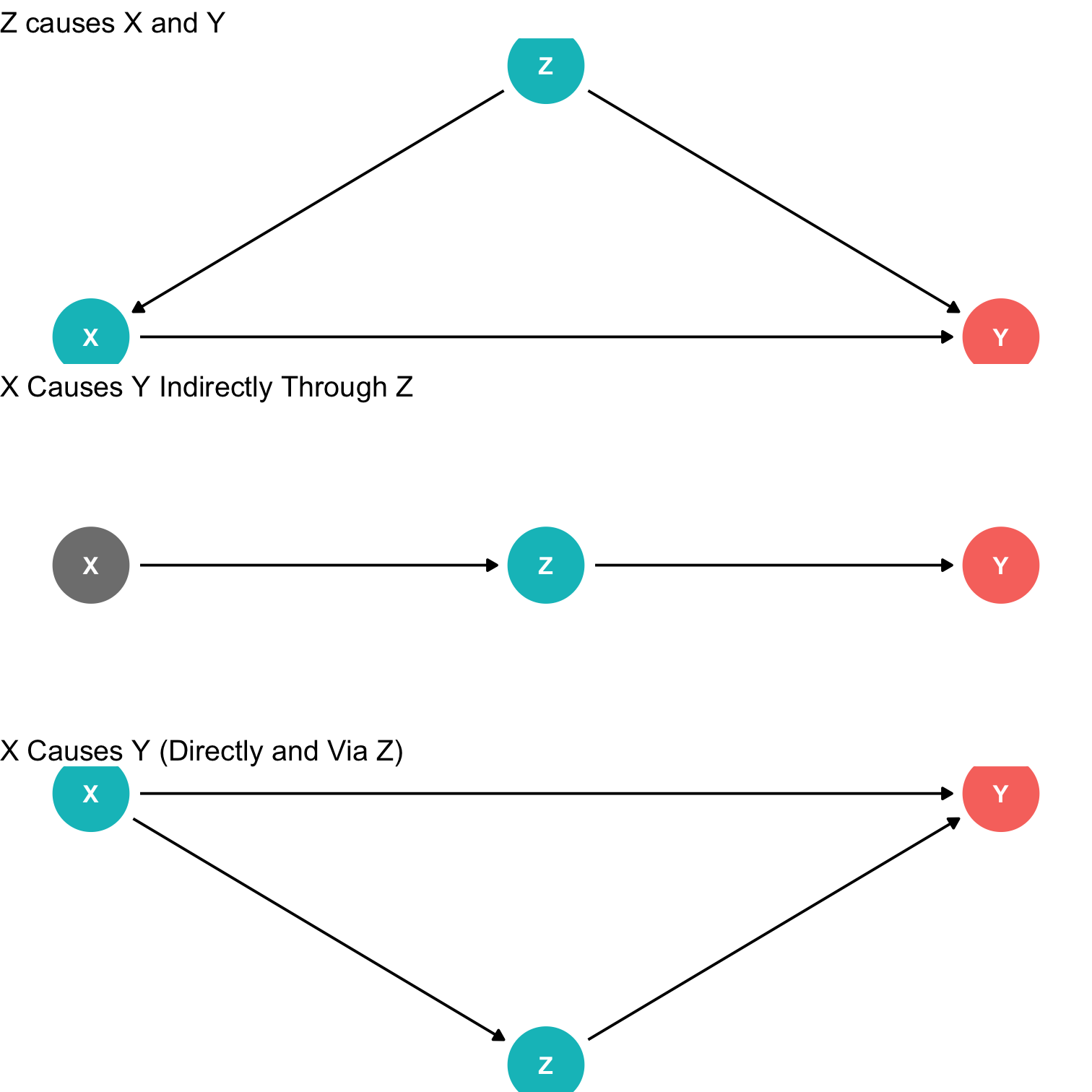

# Identification Problem: Endogeneity

- An independent variable `$(X)$` is .hi-purple[exogenous] if its variation is .hi-turquoise[unrelated] to other factors that affect the dependent variable `$(Y)$`

- An independent variable `$(X)$` is .hi-purple[endogenous] if its variation is .hi-turquoise[related] to other factors that affect the dependent variable `$(Y)$`

- Note: unfortunately this is different from how economists talk about endogenous vs. exogenous variables in theoretical models...
]

---

# Identification Problem: Endogeneity

- An independent variable `$(X)$` is .hi-purple[exogenous] if its variation is .hi-turquoise[unrelated] to other factors that affect the dependent variable `$(Y)$`

]

]

---

# Identification Problem: Endogeneity

- An independent variable `$(X)$` is .hi-purple[endogenous] if its variation is .hi-turquoise[related] to other factors that affect the dependent variable `$(Y)$`, e.g. `$Z$`

]

]

---

# Inference Problem: Randomness

.pull-left[
.smaller[
- Data is .hi-purple[random] due to .hi-purple[natural sampling variation]
  - Taking one sample of a population will yield slightly different information than another sample of the same population
- Common in statistics, *easy to fix*

- .hi[Inferential Statistics]: making claims about a wider population using sample data
  - We use common tools and techniques to deal with randomness
]
]
.pull-right[
.center[
![:scale 90%](https://www.dropbox.com/s/bsdtuddzjouwzr1/sampling.jpg?raw=1)
]
]

---

# The Two Problems: Where We're Heading...Ultimately

.center[
.b[Sample] `$\color{#6A5ACD}{\xrightarrow{\text{statistical inference}}}$` .b[Population] `$\color{#e64173}{\xrightarrow{\text{causal indentification}}}$` .b[Unobserved Parameters]
]

- We want to .hi[identify] causal relationships between **population** variables
  - Logically first thing to consider
  - .hi-purple[Endogeneity problem]

- We'll use **sample** *statistics* to .hi-purple[infer] something about population *parameters*
  - In practice, we'll only ever have a finite *sample distribution* of data
  - We *don't* know the *population distribution* of data
  - .hi-purple[Randomness problem]

---

---

# Data 101

- .hi[Data] are information with context

- .hi[Individuals] are the entities described by a set of data
    - e.g. persons, households, firms, countries

]

![](../images/individual1.jpg)

]

---

# Data 101

.pull-left[
.smallest[
- .hi[Variables] are particular characteristics about an individual
    - e.g. age, income, profits, population, GDP, marital status, type of legal institutions

- .hi[Observations] or .hi[cases] are the separate individuals described by a collection of variables
    - e.g. for one individual, we have their age, sex, income, education, etc.

- individuals and observations are *not necessarily* the same:
    - e.g. we can have multiple observations on the same individual over time
]
]
.pull-right[

![](../images/individual1.jpg)

]

---

# Categorical Data

- .hi[Categorical data] place an individual into one of several possible *categories*
    - e.g. sex, season, political party
    - may be responses to survey questions
    - can be quantitative (e.g. age, zip code)

- In `R`: `character` or `factor` type data
  - `factor` `$\implies$` specific possible categories
]

![](../images/categoricaldata.png)

]

---

# Categorical Data: Visualizing I

```r
diamonds %>%
  count(cut) %>%
  mutate(frequency = n / sum(n),
         percent = round(frequency * 100, 2))
```

<table>
<caption>Summary of diamonds by cut</caption>
 <thead>
  <tr>
   <th style="text-align:left;"> cut </th>
   <th style="text-align:right;"> n </th>
   <th style="text-align:right;"> frequency </th>
   <th style="text-align:right;"> percent </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:left;"> Fair </td>
   <td style="text-align:right;"> 1610 </td>
   <td style="text-align:right;"> 0.0298480 </td>
   <td style="text-align:right;"> 2.98 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Good </td>
   <td style="text-align:right;"> 4906 </td>
   <td style="text-align:right;"> 0.0909529 </td>
   <td style="text-align:right;"> 9.10 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Very Good </td>
   <td style="text-align:right;"> 12082 </td>
   <td style="text-align:right;"> 0.2239896 </td>
   <td style="text-align:right;"> 22.40 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Premium </td>
   <td style="text-align:right;"> 13791 </td>
   <td style="text-align:right;"> 0.2556730 </td>
   <td style="text-align:right;"> 25.57 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Ideal </td>
   <td style="text-align:right;"> 21551 </td>
   <td style="text-align:right;"> 0.3995365 </td>
   <td style="text-align:right;"> 39.95 </td>
  </tr>
</tbody>
</table>

]

- Good way to represent categorical data is with a .hi[frequency table]

- .hi-purple[Count (n)]: total number of individuals in a category

- .hi-purple[Frequency]: **proportion** of a category's ocurrence relative to all data
  - Multiply proportions by 100% to get **percentages**

]

---

# Categorical Data: Visualizing II

- .hi-purple[Charts and graphs are *always* better ways to visualize data]

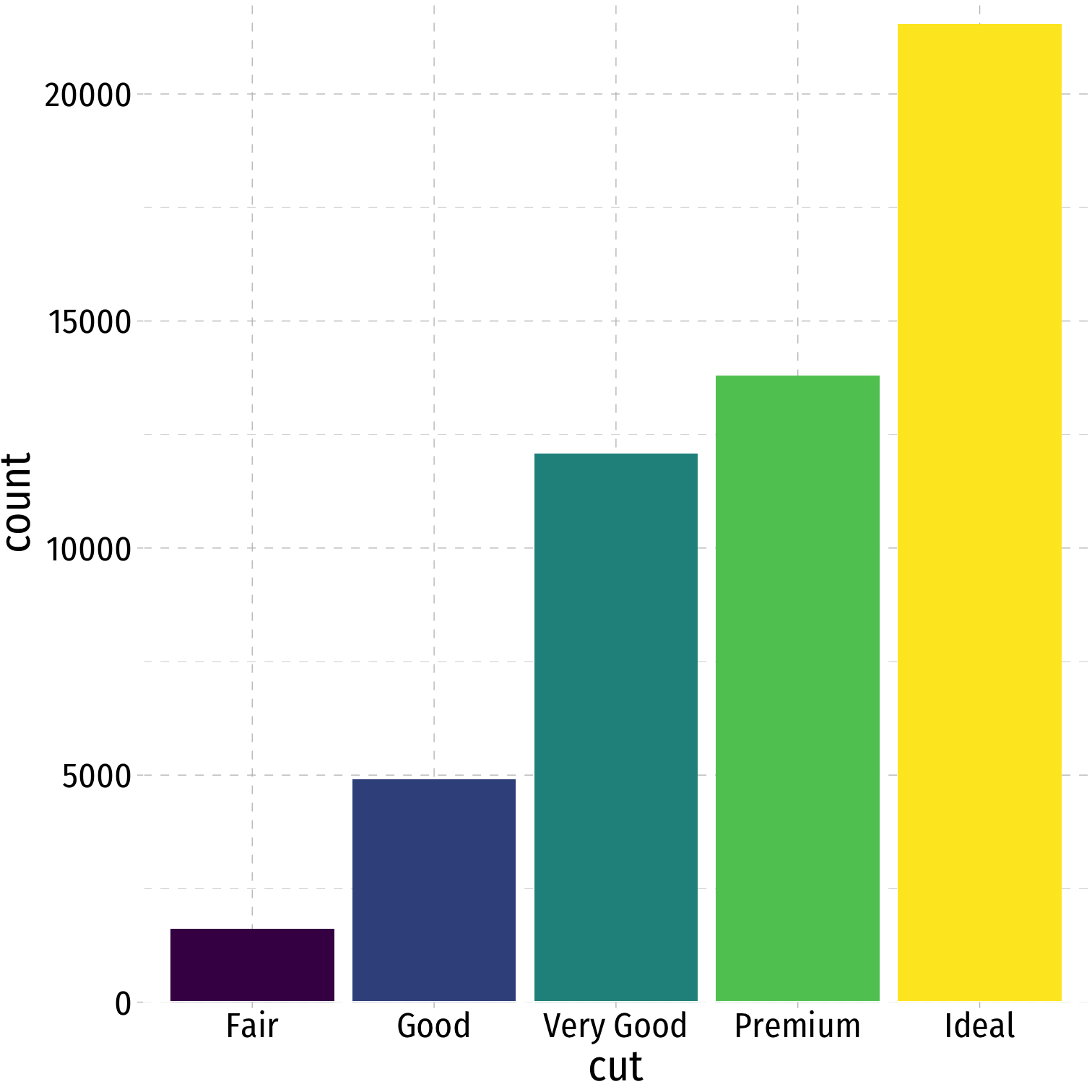

- A .hi[bar graph] represents categories as bars, with lengths proportional to the count or relative frequency of each category

```r
ggplot(diamonds, aes(x=cut,
                     fill=cut))+
  geom_bar()+
  guides(fill=F)+
  theme_pander(base_family = "Fira Sans Condensed",
           base_size=20)
```

]

]

---

# Categorical Data: Visualizing III

- Avoid pie charts!

- People are *not* good at judging 2-d differences (angles, area)

- People *are* good at judging 1-d differences (length)

]

]

---

# Categorical Data: Visualizing IV

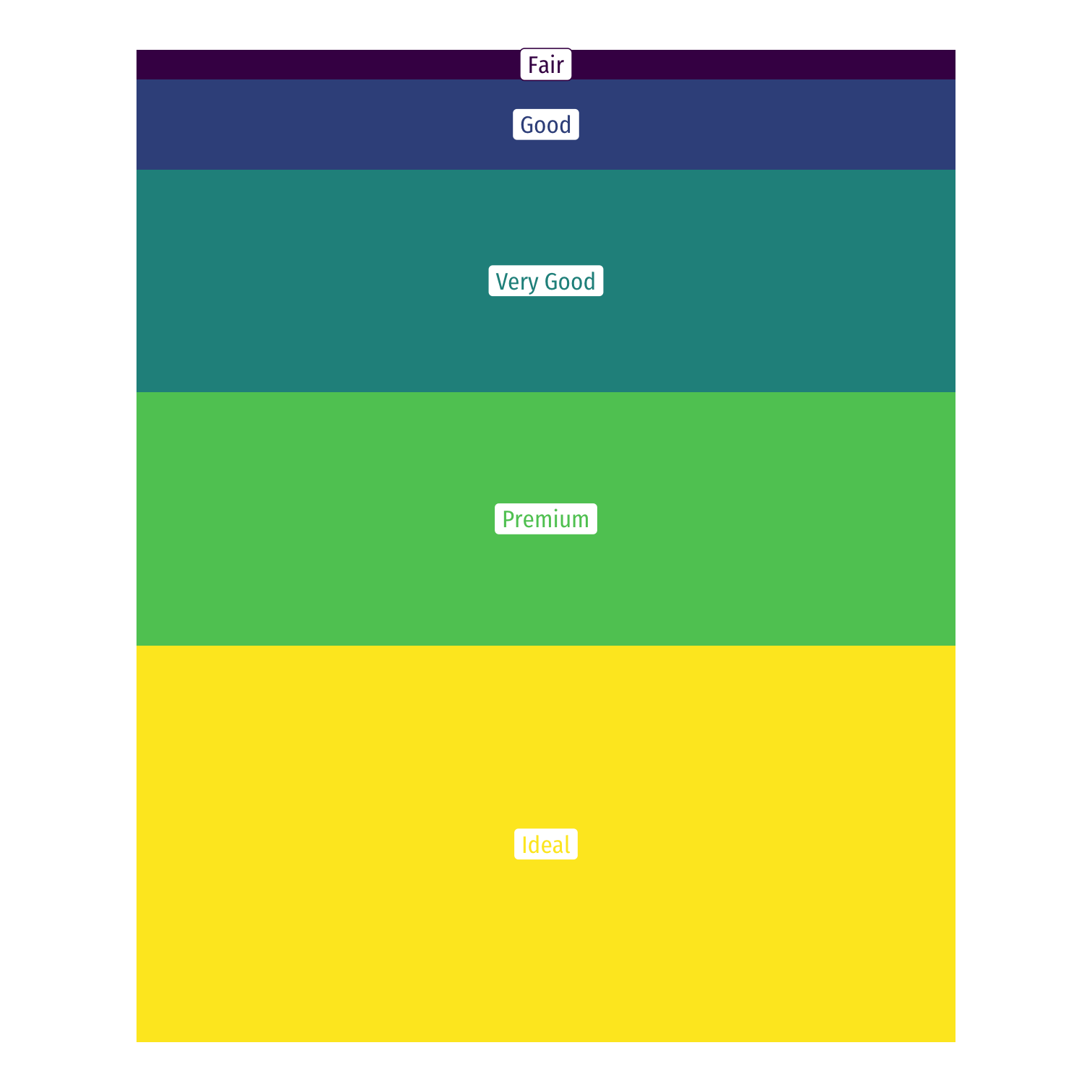

- Maybe a *stacked bar chart*

```r
diamonds %>%
  count(cut) %>%
ggplot(data = .)+
  aes(x = "",
      y = n)+
  geom_col(aes(fill = cut))+
  geom_label(aes(label = cut,
                 color = cut),
             position = position_stack(vjust = 0.5)
             )+
  guides(color = F,
         fill = F)+
  theme_void()
```

]

]

---

# Categorical Data: Visualizing IV

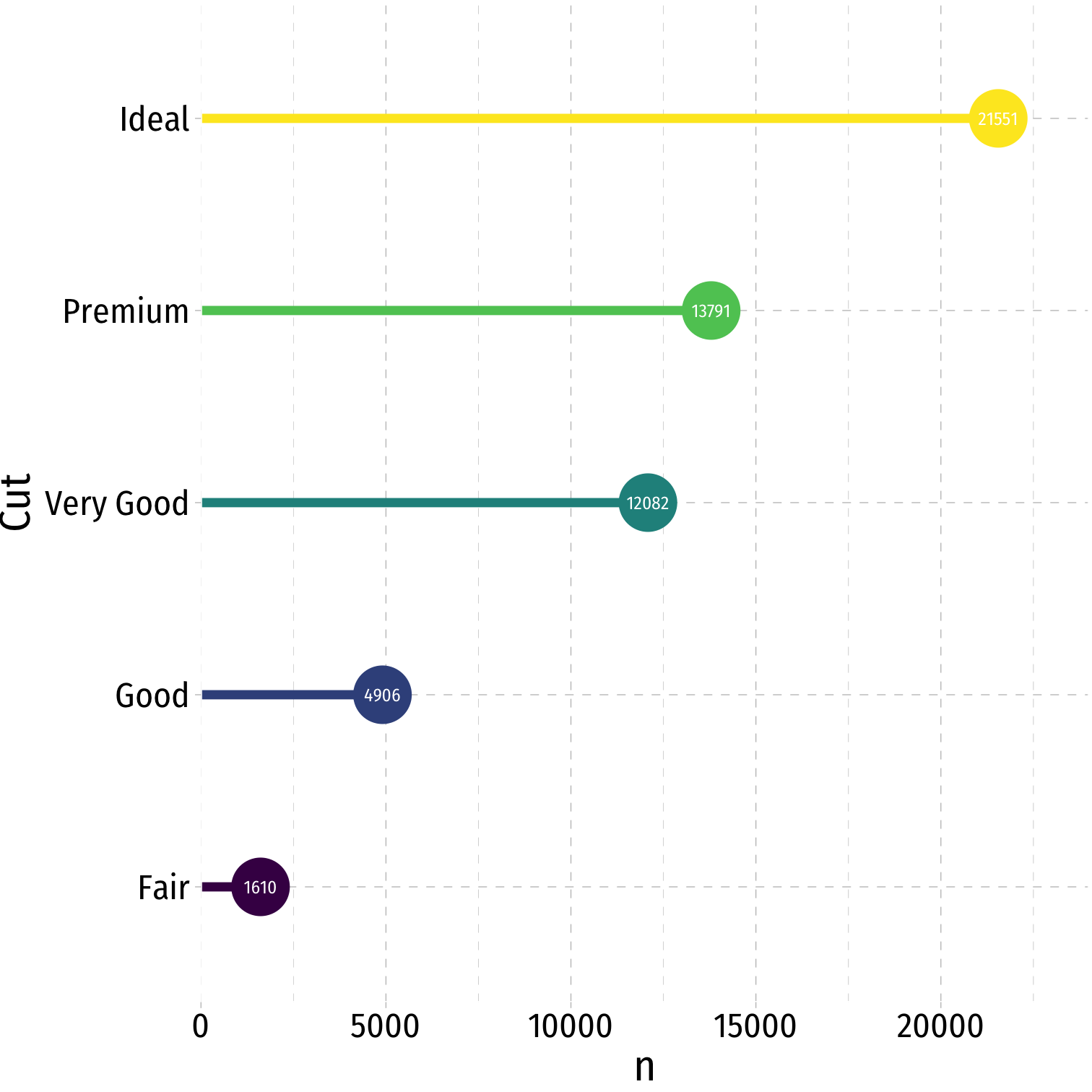

- Maybe *lollipop chart*

```r
diamonds %>%
  count(cut) %>%
  mutate(cut_name = as.factor(cut)) %>%
ggplot(., aes(x = cut_name, y = n, color = cut))+
 geom_point(stat="identity",
            fill="black",
            size=12)  +
  geom_segment(aes(x = cut_name, y = 0,
                   xend = cut_name,
                   yend = n), size = 2)+
  geom_text(aes(label = n),color="white", size=3) +
  coord_flip()+
  labs(x = "Cut")+
  theme_pander(base_family = "Fira Sans Condensed",
                base_size=20)+
  guides(color = F)
```

]

]

---

# Categorical Data: Visualizing IV

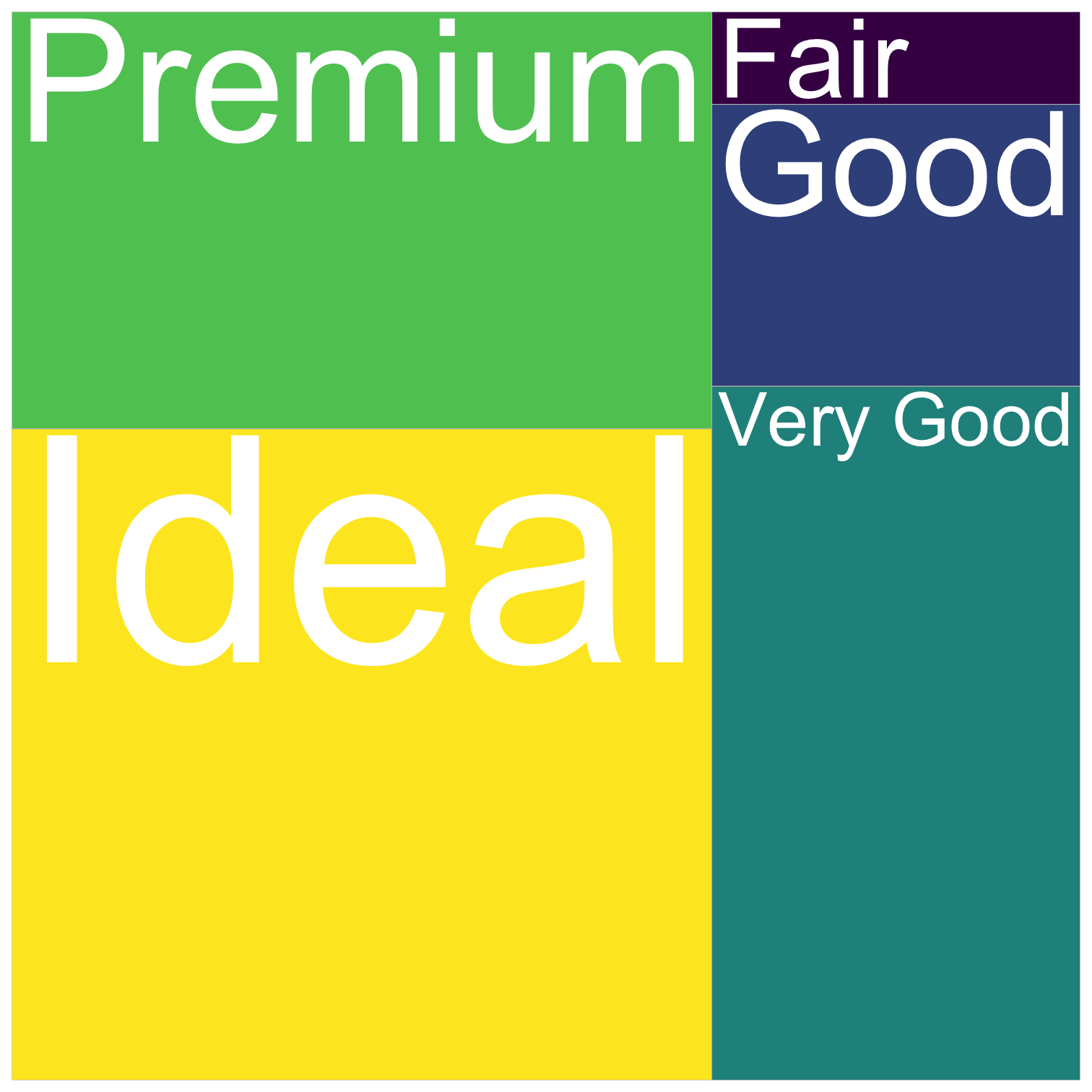

- Maybe a *treemap*

```r
library(treemapify)
diamonds %>%
  count(cut) %>%
ggplot(., aes(area = n, fill = cut)) +
  geom_treemap() +
  guides(fill = FALSE) +
  geom_treemap_text(aes(label = cut),
                    colour = "white",
                    place = "topleft",
                    grow = TRUE)
```

]

]

---

# Quantitative Data I

.pull-left[
.smallest[
- .hi[Quantitative variables] take on numerical values of equal units that describe an individual
    - Units: points, dollars, inches
    - Context: GPA, prices, height

- We can mathematically manipulate *only* quantitative data
    - e.g. sum, average, standard deviation

- In `R`: `numeric` type data
  - `integer` if whole number
  - `double` if has decimals
]
]

![:scale 75%](../images/mathoperations.jpg)

]

---

# Discrete Data

- .hi[Discrete data] are finite, with a countable number of alternatives

- .hi-purple[Categorical]: place data into categories
  - e.g. letter grades: A, B, C, D, F
  - e.g. class level: freshman, sophomore, junior, senior

- .hi-purple[Quantitative]: integers
  - e.g. SAT Score, number of children, age (years)

]

![](../images/buildingblocks.jpeg)
]

---

# Continuous Data

- .hi[Continuous data] are infinitely divisible, with an uncountable number of alternatives
    - e.g. weight, length, temperature, GPA

- Many discrete variables may be treated as if they are continuous
    - e.g. SAT scores (whole points), wages (dollars and cents)

]

# Spreadsheets

<table class="table table-striped table-hover" style="width: auto !important; margin-left: auto; margin-right: auto;">
 <thead>
  <tr>
   <th style="text-align:right;"> ID </th>
   <th style="text-align:left;"> Name </th>
   <th style="text-align:right;"> Age </th>
   <th style="text-align:left;"> Sex </th>
   <th style="text-align:right;"> Income </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:right;"> 1 </td>
   <td style="text-align:left;"> John </td>
   <td style="text-align:right;"> 23 </td>
   <td style="text-align:left;"> Male </td>
   <td style="text-align:right;"> 41000 </td>
  </tr>
  <tr>
   <td style="text-align:right;"> 2 </td>
   <td style="text-align:left;"> Emile </td>
   <td style="text-align:right;"> 18 </td>
   <td style="text-align:left;"> Male </td>
   <td style="text-align:right;"> 52600 </td>
  </tr>
  <tr>
   <td style="text-align:right;"> 3 </td>
   <td style="text-align:left;"> Natalya </td>
   <td style="text-align:right;"> 28 </td>
   <td style="text-align:left;"> Female </td>
   <td style="text-align:right;"> 48000 </td>
  </tr>
  <tr>
   <td style="text-align:right;"> 4 </td>
   <td style="text-align:left;"> Lakisha </td>
   <td style="text-align:right;"> 31 </td>
   <td style="text-align:left;"> Female </td>
   <td style="text-align:right;"> 60200 </td>
  </tr>
  <tr>
   <td style="text-align:right;"> 5 </td>
   <td style="text-align:left;"> Cheng </td>
   <td style="text-align:right;"> 36 </td>
   <td style="text-align:left;"> Male </td>
   <td style="text-align:right;"> 81900 </td>
  </tr>
</tbody>
</table>

]

- The most common data structure we use is a .hi[spreadsheet]
    - In *R*: a `data.frame` or `tibble`

- A .hi-purple[row] contains data about all variables for a single .hi-purple[individual]

- A .hi-purple[column] contains data about a single .hi-purple[variable] across all individuals

]

---

# Spreadsheets

]

- Each .hi-purple[cell] can be referenced by its row and column (in that order!), `df[row,column]`

```r
example[3,2] # value in row 3, column 2
```

```
## # A tibble: 1 × 1
##   Name
##   <chr>
## 1 Natalya
```

- Recall [how to “subset” data frames](https://metricsf21.classes.ryansafner.com/slides/1.2-slides#67) from 1.2; though it’s now much easier with `filter()` and `select()`!
]

---

# Spreadsheets II

- It is common to use some notation like the following:

- Let `$\{x_1, x_2, \cdots, x_n\}$` be a simple data series on variable `$X$`
    - `$n$` individual observations
    - `$x_i$` is the value of the `$i$`<sup>th</sup> observation for `$i=1,2,\cdots, n$`

.content-box-blue[
.blue[**Quick Check**]: Let `$x$` represent the score on a homework assignment:
`$$75, 100, 92, 87, 79, 0, 95$$`

1. What is `$n$`?
2. What is `$x_1$`?
3. What is `$x_6$`?
]

---

# Datasets: Cross-Sectional

<table>
 <thead>
  <tr>
   <th style="text-align:right;"> ID </th>
   <th style="text-align:left;"> Name </th>
   <th style="text-align:right;"> Age </th>
   <th style="text-align:left;"> Sex </th>
   <th style="text-align:right;"> Income </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:right;"> 1 </td>
   <td style="text-align:left;"> John </td>
   <td style="text-align:right;"> 23 </td>
   <td style="text-align:left;"> Male </td>
   <td style="text-align:right;"> 41000 </td>
  </tr>
  <tr>
   <td style="text-align:right;"> 2 </td>
   <td style="text-align:left;"> Emile </td>
   <td style="text-align:right;"> 18 </td>
   <td style="text-align:left;"> Male </td>
   <td style="text-align:right;"> 52600 </td>
  </tr>
  <tr>
   <td style="text-align:right;"> 3 </td>
   <td style="text-align:left;"> Natalya </td>
   <td style="text-align:right;"> 28 </td>
   <td style="text-align:left;"> Female </td>
   <td style="text-align:right;"> 48000 </td>
  </tr>
  <tr>
   <td style="text-align:right;"> 4 </td>
   <td style="text-align:left;"> Lakisha </td>
   <td style="text-align:right;"> 31 </td>
   <td style="text-align:left;"> Female </td>
   <td style="text-align:right;"> 60200 </td>
  </tr>
  <tr>
   <td style="text-align:right;"> 5 </td>
   <td style="text-align:left;"> Cheng </td>
   <td style="text-align:right;"> 36 </td>
   <td style="text-align:left;"> Male </td>
   <td style="text-align:right;"> 81900 </td>
  </tr>
</tbody>
</table>

]

- .hi[Cross-sectional data]: observations of individuals at a given point in time

- Each observation is a unique individual
`$$x_i$$`

- Simplest and most common data

- A .hi-purple["snapshot"] to compare differences across individuals

]

---

# Datasets: Time-Series

<table>
 <thead>
  <tr>
   <th style="text-align:right;"> Year </th>
   <th style="text-align:right;"> GDP </th>
   <th style="text-align:right;"> Unemployment </th>
   <th style="text-align:right;"> CPI </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:right;"> 1950 </td>
   <td style="text-align:right;"> 8.2 </td>
   <td style="text-align:right;"> 0.06 </td>
   <td style="text-align:right;"> 100 </td>
  </tr>
  <tr>
   <td style="text-align:right;"> 1960 </td>
   <td style="text-align:right;"> 9.9 </td>
   <td style="text-align:right;"> 0.04 </td>
   <td style="text-align:right;"> 118 </td>
  </tr>
  <tr>
   <td style="text-align:right;"> 1970 </td>
   <td style="text-align:right;"> 10.2 </td>
   <td style="text-align:right;"> 0.08 </td>
   <td style="text-align:right;"> 130 </td>
  </tr>
  <tr>
   <td style="text-align:right;"> 1980 </td>
   <td style="text-align:right;"> 12.4 </td>
   <td style="text-align:right;"> 0.08 </td>
   <td style="text-align:right;"> 190 </td>
  </tr>
  <tr>
   <td style="text-align:right;"> 1985 </td>
   <td style="text-align:right;"> 13.6 </td>
   <td style="text-align:right;"> 0.06 </td>
   <td style="text-align:right;"> 196 </td>
  </tr>
</tbody>
</table>

]

- .hi[Time-series data]: observations of the *same* individual(s) over time

- Each observation is a time period
`$$x_{t}$$`

- Often used for macroeconomics, finance, and forecasting

- Unique challenges for time series

- A .hi-purple["moving picture"] to see how individuals change over time

]

---

# Datasets: Panel

<table>
 <thead>
  <tr>
   <th style="text-align:left;"> City </th>
   <th style="text-align:right;"> Year </th>
   <th style="text-align:right;"> Murders </th>
   <th style="text-align:right;"> Population </th>
   <th style="text-align:right;"> UR </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:left;"> Philadelphia </td>
   <td style="text-align:right;"> 1986 </td>
   <td style="text-align:right;"> 5 </td>
   <td style="text-align:right;"> 3.700 </td>
   <td style="text-align:right;"> 8.7 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Philadelphia </td>
   <td style="text-align:right;"> 1990 </td>
   <td style="text-align:right;"> 8 </td>
   <td style="text-align:right;"> 4.200 </td>
   <td style="text-align:right;"> 7.2 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> D.C. </td>
   <td style="text-align:right;"> 1986 </td>
   <td style="text-align:right;"> 2 </td>
   <td style="text-align:right;"> 0.250 </td>
   <td style="text-align:right;"> 5.4 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> D.C. </td>
   <td style="text-align:right;"> 1990 </td>
   <td style="text-align:right;"> 10 </td>
   <td style="text-align:right;"> 0.275 </td>
   <td style="text-align:right;"> 5.5 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> New York </td>
   <td style="text-align:right;"> 1986 </td>
   <td style="text-align:right;"> 3 </td>
   <td style="text-align:right;"> 6.400 </td>
   <td style="text-align:right;"> 9.6 </td>
  </tr>
</tbody>
</table>

]

.pull-right[
.smaller[
- .hi[Panel], or .hi[longitudinal] dataset: a time-series for *each* cross-sectional entity
  - Must be *same* individuals over time

- Each obs. is an individual in a time period
`$$x_{it}$$`

- More common today for serious researchers; unique challenges and benefits

- A .hi-purple[combination] of "snapshot" comparisons over time
]
]

---

# Descriptive Statistics

---

# Variables and Distributions

- Variables take on different values, we can describe a variable's .hi[distribution] (of these values)

- We want to *visualize* and *analyze* distributions to search for meaningful patterns using **statistics**

---

# Two Branches of Statistics

- Two main branches of statistics:

1. .hi[Descriptive Statistics:] describes or summarizes the properties of a sample

2. .hi[Inferential Statistics:] infers properties about a larger population from the properties of a sample<sup>.magenta[†]</sup>

]

.footnote[<sup>.magenta[†]</sup> We'll encounter inferential statistics mainly in the context of regression later.]

---

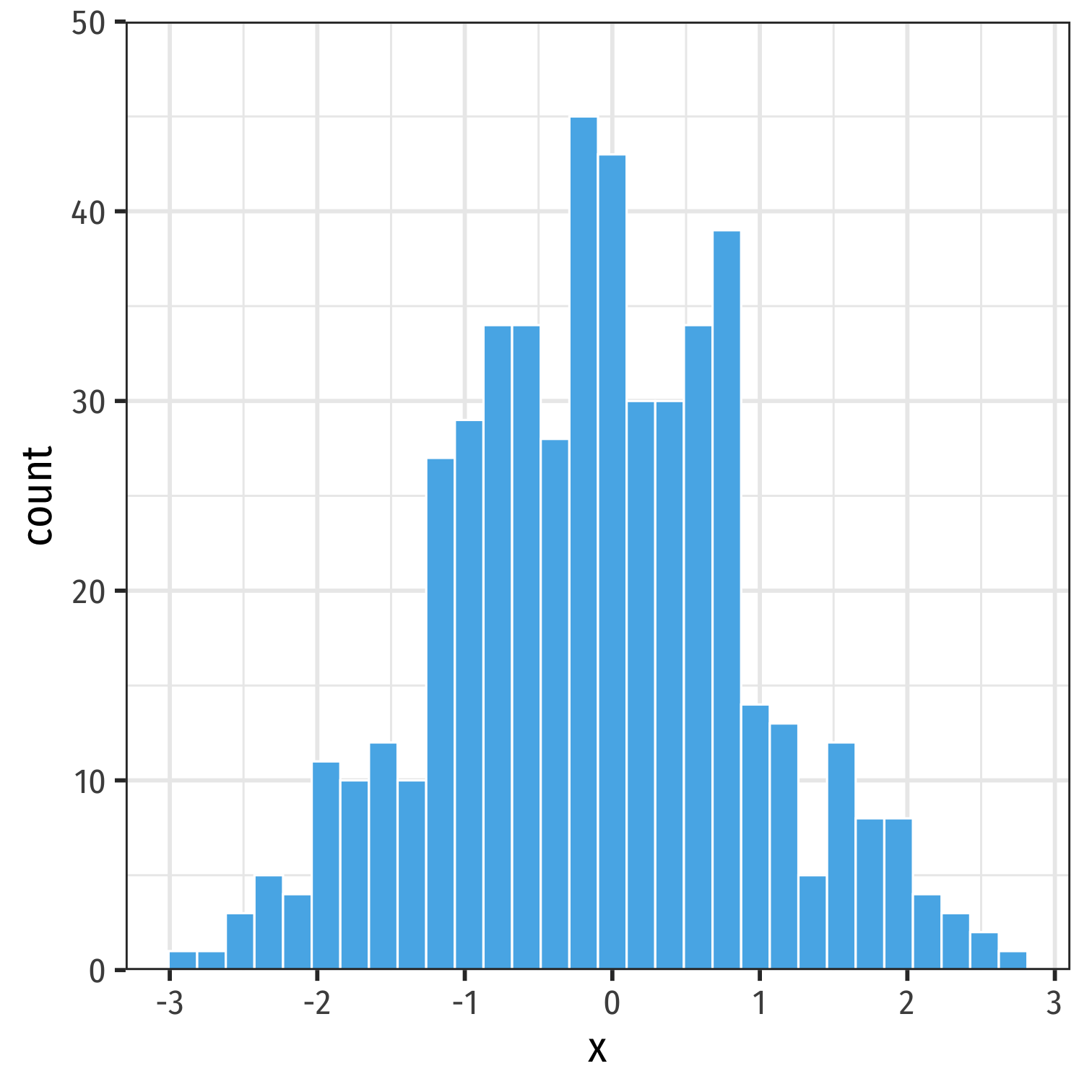

# Histograms

- A common way to present a *quantitative* variable's distribution is a .hi[histogram]
    - The quantitative analog to the bar graph for a categorical variable

- Divide up values into **bins** of a certain size, and count the number of values falling within each bin, representing them visually as bars

]

<img src="2.1-slides_files/figure-html/unnamed-chunk-15-1.png" width="504" style="display: block; margin: auto;" />
]

---

# Histogram: Example

.bg-washed-green.b--dark-green.ba.bw2.br3.shadow-5.ph4.mt5[
.green[**Example**]: a class of 13 students takes a quiz (out of 100 points) with the following results:

`$$\{ 0, 62, 66, 71, 71, 74, 76, 79, 83, 86, 88, 93, 95 \}$$`
]
]
]

---

# Histogram: Example

.smallest[
.bg-washed-green.b--dark-green.ba.bw2.br3.shadow-5.ph4.mt5[
.green[**Example**]: a class of 13 students takes a quiz (out of 100 points) with the following results:

`$$\{ 0, 62, 66, 71, 71, 74, 76, 79, 83, 86, 88, 93, 95 \}$$`
]

]

```r
quizzes<-tibble(scores = c(0,62,66,71,71,74,76,79,83,86,88,93,95))
```
]
]

---

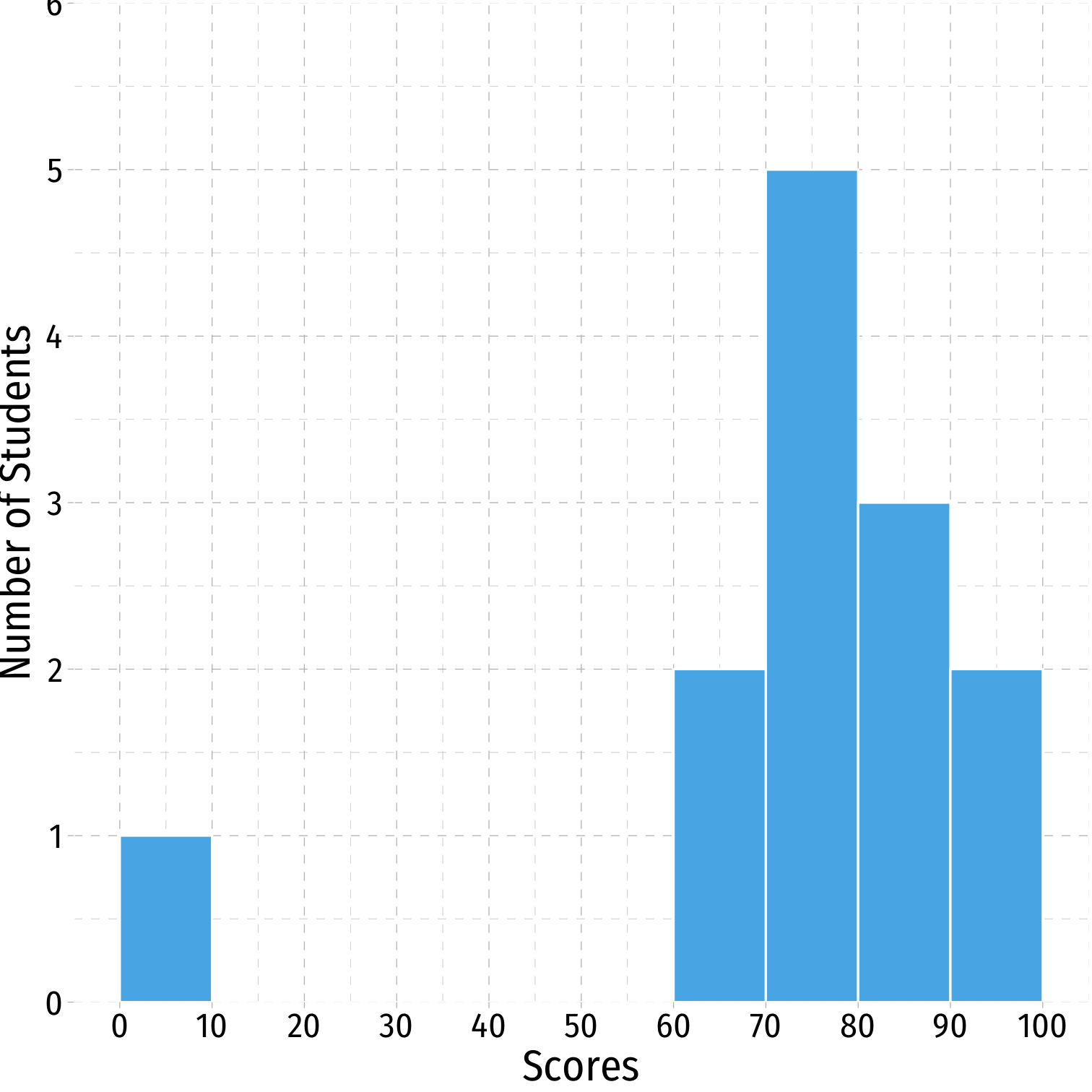

# Histogram: Example

.smallest[
.bg-washed-green.b--dark-green.ba.bw2.br3.shadow-5.ph4.mt5[
.green[**Example**]: a class of 13 students takes a quiz (out of 100 points) with the following results:

`$$\{ 0, 62, 66, 71, 71, 74, 76, 79, 83, 86, 88, 93, 95 \}$$`
]

]

```r
h<-ggplot(quizzes,aes(x=scores))+
  geom_histogram(breaks = seq(0,100,10),
                 color = "white",
                 fill = "#56B4E9")+
  scale_x_continuous(breaks = seq(0,100,10))+
  scale_y_continuous(limits = c(0,6), expand = c(0,0))+
  labs(x = "Scores",
       y = "Number of Students")+
  ggthemes::theme_pander(base_family = "Fira Sans Condensed",
           base_size=20)
h
```
]
]

.pull-right[
.center[
<img src="2.1-slides_files/figure-html/unnamed-chunk-16-1.png" width="504" style="display: block; margin: auto;" />
]
]
---

# Descriptive Statistics

.pull-left[
- We are often interested in the *shape* or *pattern* of a distribution, particularly:
    - Measures of **center**
    - Measures of **dispersion**
    - **Shape** of distribution
]

---

# Measures of Center

---

# Mode

- The .hi[mode] of a variable is simply its most frequent value

- A variable can have multiple modes

.bg-washed-green.b--dark-green.ba.bw2.br3.shadow-5.ph4.mt5[
.green[**Example**]: a class of 13 students takes a quiz (out of 100 points) with the following results:

`$$\{ 0, 62, 66, \mathbf{71}, \mathbf{71}, 74, 76, 79, 83, 86, 88, 93, 95 \}$$`
]

---

# Mode

- There is no dedicated `mode()` function in `R`, surprisingly

- A workaround in `dplyr`:

```r
quizzes %>%
  count(scores) %>%
  arrange(desc(n))
```

]

```
## # A tibble: 12 × 2
##    scores     n
##     <dbl> <int>
##  1     71     2
##  2      0     1
##  3     62     1
##  4     66     1
##  5     74     1
##  6     76     1
##  7     79     1
##  8     83     1
##  9     86     1
## 10     88     1
## 11     93     1
## 12     95     1
```
]

---

# Multi-Modal Distributions

- Looking at a histogram, the modes are the "peaks" of the distribution
    - Note: depends on how wide you make the bins!

- May be unimodal, bimodal, trimodal, etc

]

.pull-right[
<img src="2.1-slides_files/figure-html/unnamed-chunk-18-1.png" width="504" style="display: block; margin: auto;" />
]

---

# Symmetry and Skew I

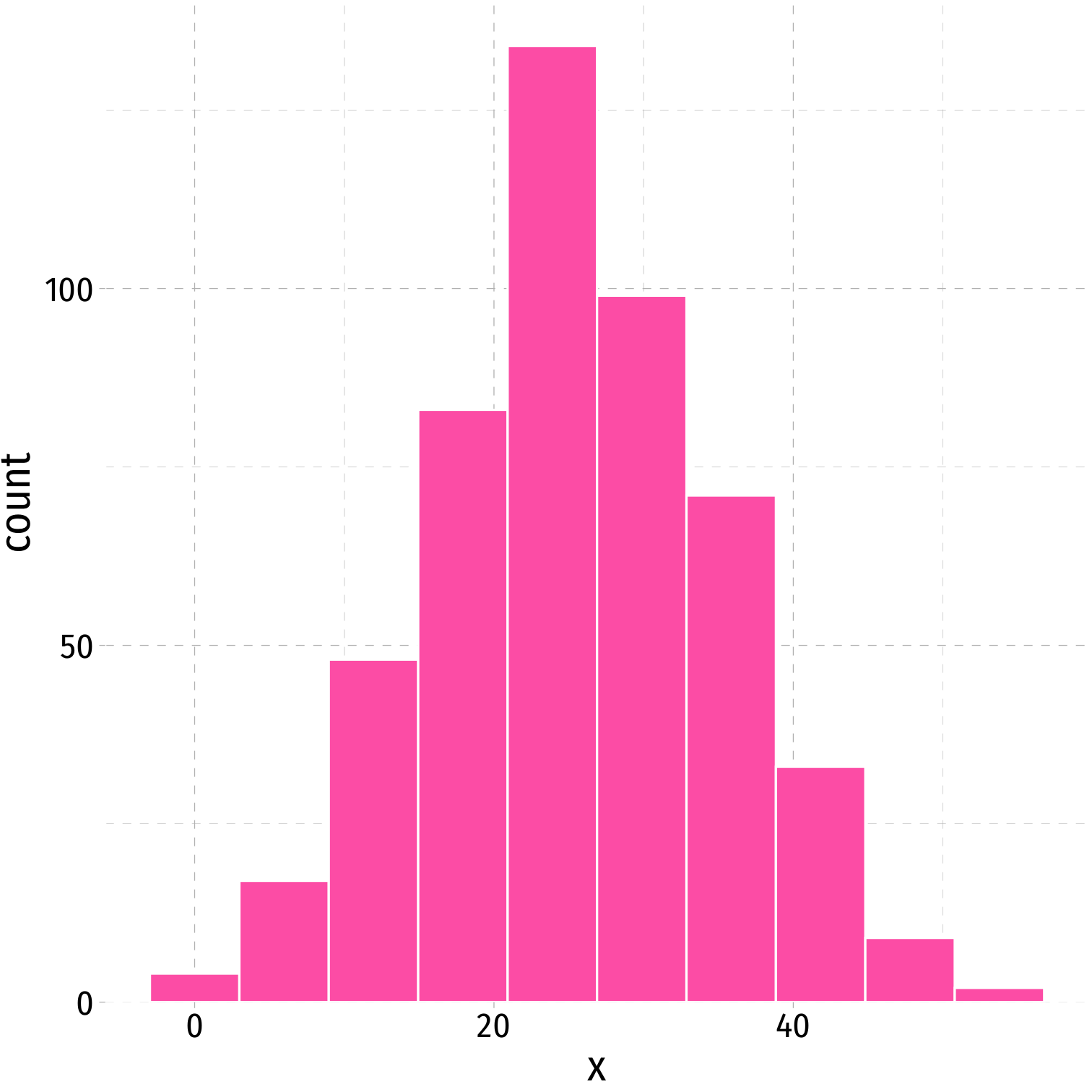

- A distribution is **symmetric** if it looks roughly the same on either side of the "center"

- The thinner ends (far left and far right) are called the **tails** of a distribution
]

.pull-right[
<img src="2.1-slides_files/figure-html/unnamed-chunk-19-1.png" width="504" style="display: block; margin: auto;" />
]

---

# Symmetry and Skew I

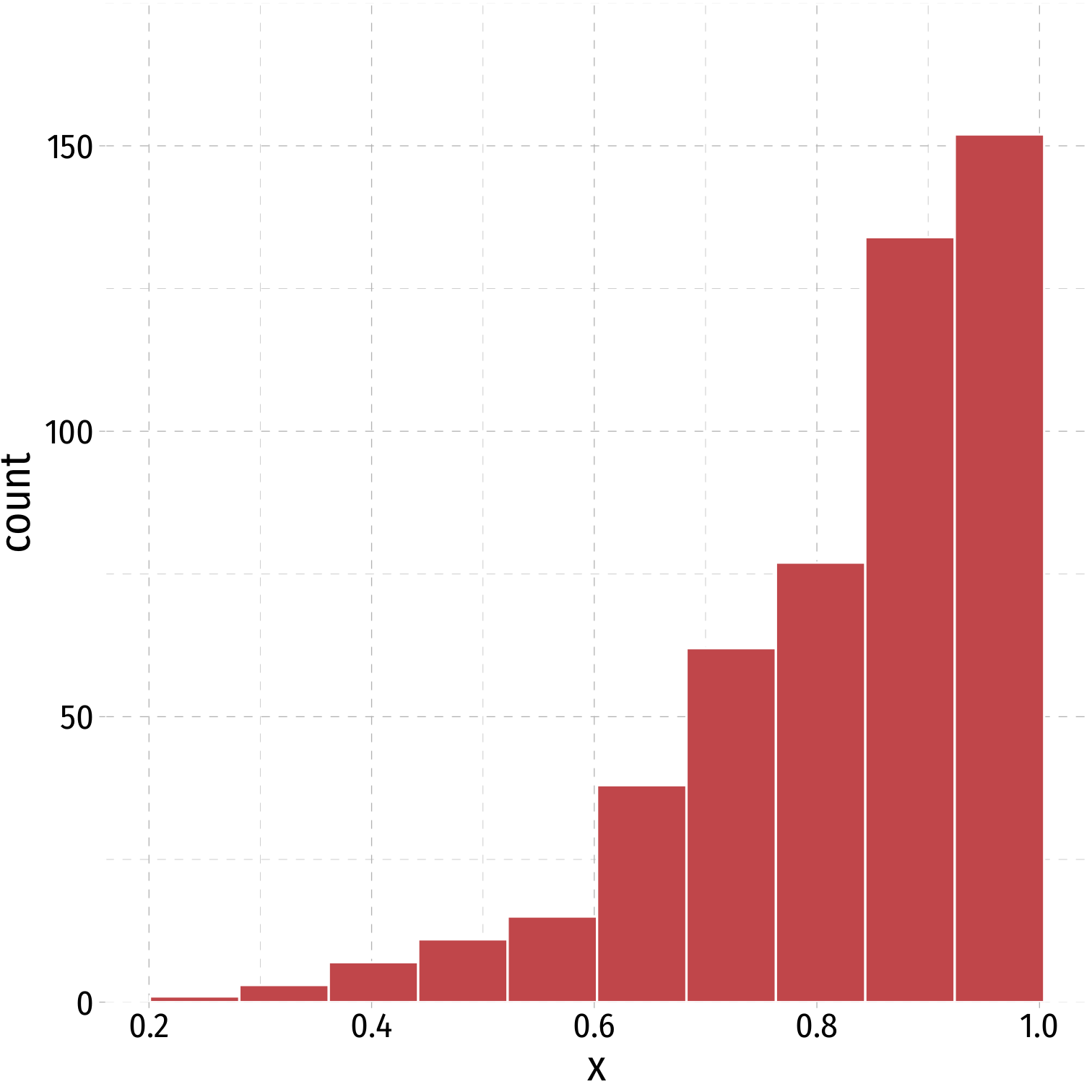

- If one tail stretches farther than the other, distribution is **skewed** in the direction of the longer tail
]

.pull-right[
<img src="2.1-slides_files/figure-html/unnamed-chunk-20-1.png" width="504" style="display: block; margin: auto;" />
]

---

# Outliers

- .hi[Outlier]: extreme value that does not appear part of the general pattern of a distribution

- Can strongly affect descriptive statistics

- Might be the most informative part of the data

- Could be the result of errors

- Should always be explored and discussed!

]

.pull-right[
<img src="2.1-slides_files/figure-html/unnamed-chunk-21-1.png" width="504" style="display: block; margin: auto;" />
]

---

# Arithmetic Mean (Population)

- The natural measure of the center of a *population*'s distribution is its .hi["average"] or .hi[arithmetic mean `\$(\mu)\$`]

`$$\mu=\frac{x_1+x_2+...+x_N}{N} = \frac{1}{N} \sum^N_{i=1} x_i$$`

- For `$N$` values of variable `$x$`, "mu" is the sum of all individual `$x$` values `$(x_i)$` from 1 to `$N$`, divided by the `$N$` number of values<sup>.magenta[†]</sup>

- See [today's class notes](/content/2.1-content) for more about the .hi-purple[summation operator, `\$\displaystyle\Sigma\$`], it'll come up again!

---

# Arithmetic Mean (Sample)

`$$\bar{x}=\frac{x_1+x_2+...+x_n}{n} = \frac{1}{n} \sum^n_{i=1} x_i$$`

- For `$n$` values of variable `$x$`, "x-bar" is the sum of all individual `$x$` values `$(x_i)$` divided by the `$n$` number of values
]

`$$\{0, 62, 66, 71, 71, 74, 76, 79, 83, 86, 88, 93, 95\}$$`

`$$\begin{align*}
\bar{x}&=\frac{1}{13}(0+62+66+71+71+74+76+79+83+86+88+93+95)\\
\bar{x}&=\frac{944}{13}\\
\bar{x}&=72.62\\
\end{align*}$$`

]
]
]
--

```r
quizzes %>%
  summarize(mean=mean(scores))
```

```
## # A tibble: 1 × 1
##    mean
##   <dbl>
## 1  72.6
```
]
]

---

# Arithmetic Mean: Affected by Outliers

- If we drop the outlier (0)

`$$\{62, 66, 71, 71, 74, 76, 79, 83, 86, 88, 93, 95\}$$`

`$$\begin{align*}
\bar{x}&=\frac{1}{12}(62+66+71+71+74+76+79+83+86+88+93+95)\\
&=\frac{944}{12}\\
&=78.67\\
\end{align*}$$`
]
]
]

```r
quizzes %>%
  filter(scores>0) %>%
  summarize(mean=mean(scores))
```

```
## # A tibble: 1 × 1
##    mean
##   <dbl>
## 1  78.7
```
]
]

---

# Median

`$$\{0, 62, 66, 71, 71, 74, \mathbf{76}, 79, 83, 86, 88, 93, 95\}$$`

- The .hi[median] is the midpoint of the distribution
    - 50% to the left of the median, 50% to the right of the median

- Arrange values in numerical order
    - For odd `$n$`: median is middle observation
    - For even `$n$`: median is average of two middle observations

---

# Mean, Median, and Outliers

---

# Mean, Median, Symmetry, Skew I

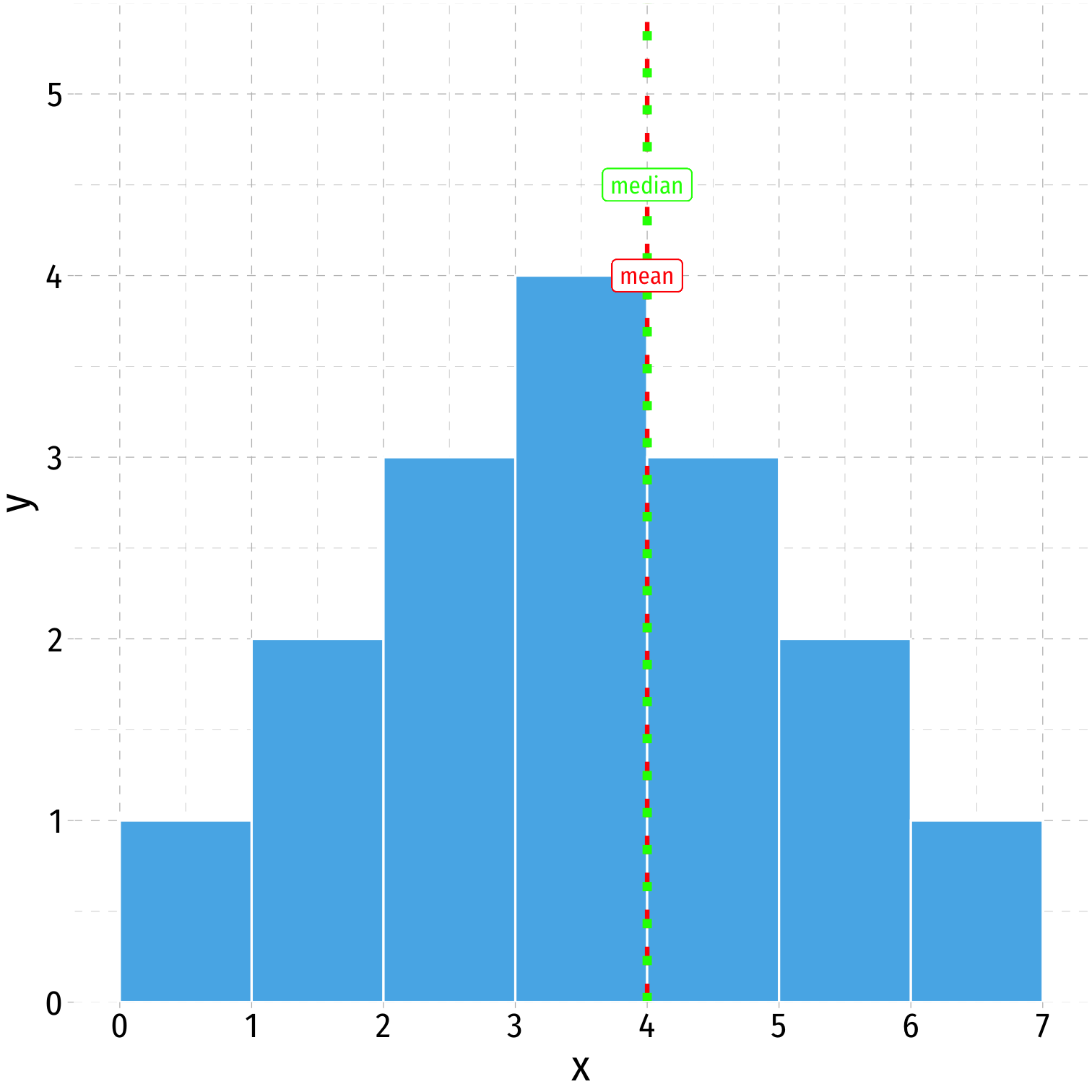

- Symmetric distribution: mean `$\approx$` median

```r
symmetric %>%
  summarize(mean = mean(x),
            median = median(x))
```

```
## # A tibble: 1 × 2
##    mean median
##   <dbl>  <dbl>
## 1     4      4
```
]

<img src="2.1-slides_files/figure-html/unnamed-chunk-26-1.png" width="504" style="display: block; margin: auto;" />
]

---

# Mean, Median, Symmetry, Skew II

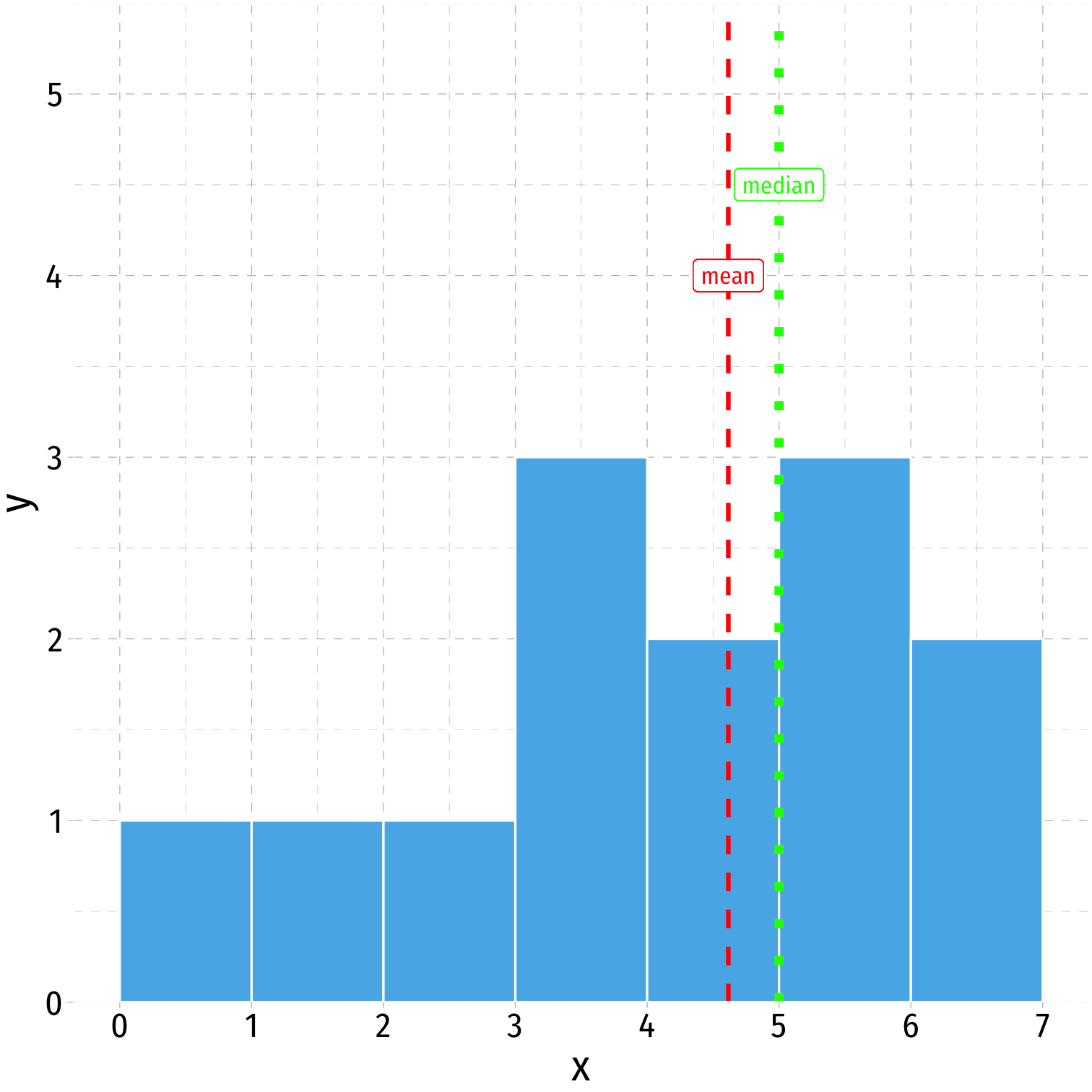

- Left-skewed: mean `$<$` median

```r
leftskew %>%
  summarize(mean = mean(x),
            median = median(x))
```

```
##       mean median
## 1 4.615385      5
```
]

<img src="2.1-slides_files/figure-html/unnamed-chunk-29-1.png" width="504" style="display: block; margin: auto;" />
]

---

# Mean, Median, Symmetry, Skew III

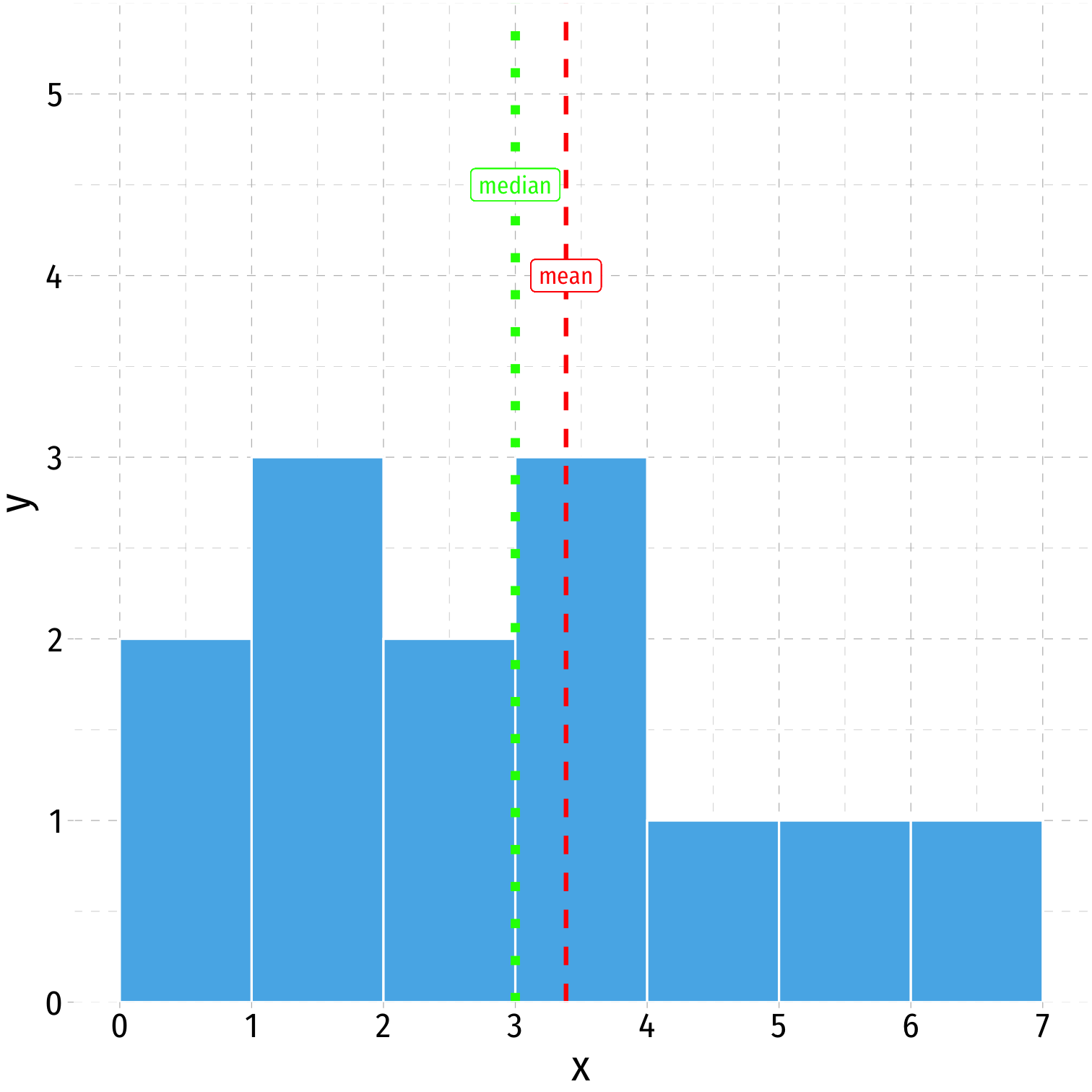

- Right-skewed: mean `$>$` median

```r
rightskew %>%
  summarize(mean = mean(x),
            median = median(x))
```

```
## # A tibble: 1 × 2
##    mean median
##   <dbl>  <dbl>
## 1  3.38      3
```
]

<img src="2.1-slides_files/figure-html/unnamed-chunk-32-1.png" width="504" style="display: block; margin: auto;" />
]

---

---

# Measures of Dispersion: Range

- The more *variation* in the data, the less helpful a measure of central tendency will tell us

- Beyond just the center, we also want to measure the spread

- Simplest metric is .hi[range] `$=max-min$`

---

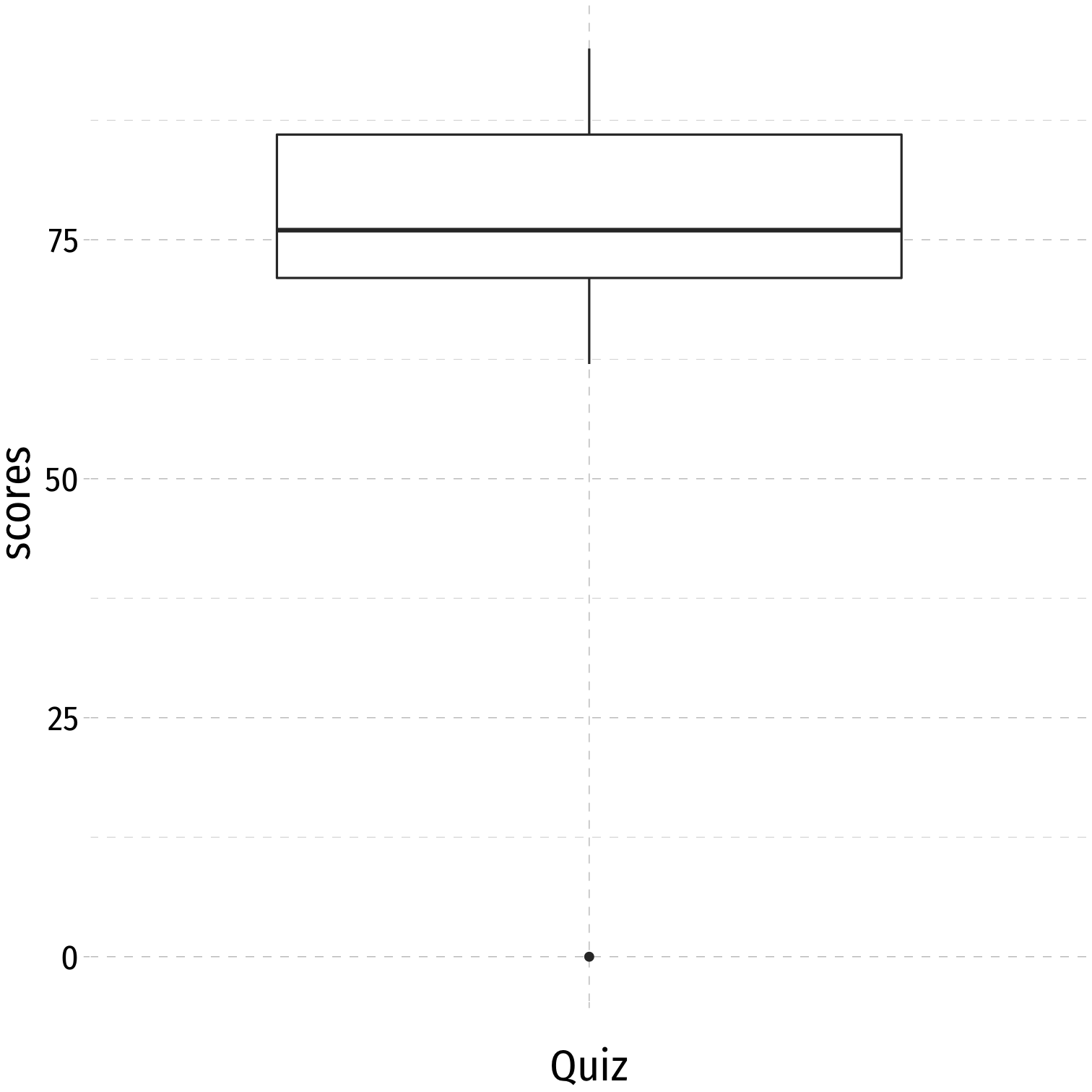

# Measures of Dispersion: 5 Number Summary I

- Common set of summary statistics of a distribution: .hi["five number summary"]:

.pull-left[
.smallest[
1. Minimum value
2. 25<sup>th</sup> percentile `$(Q_1$`, median of first 50% of data)
3. 50<sup>th</sup> percentile (median, `$Q_2)$`
4. 25<sup>th</sup> percentile `$(Q_3$`, median of last 50% of data)
5. Maximum value
]
]

```r
# Base R summary command (includes Mean)
summary(quizzes$scores)
```

```
##    Min. 1st Qu.  Median    Mean 3rd Qu.    Max.
##    0.00   71.00   76.00   72.62   86.00   95.00
```

```r
quizzes %>% # dplyr
  summarize(Min = min(scores),
            Q1 = quantile(scores, 0.25),
            Median = median(scores),
            Q3 = quantile(scores, 0.75),
            Max = max(scores))
```

```
## # A tibble: 1 × 5
##     Min    Q1 Median    Q3   Max
##   <dbl> <dbl>  <dbl> <dbl> <dbl>
## 1     0    71     76    86    95
```
]
]
---

# Measures of Dispersion: 5 Number Summary II

- The `$n$`<sup>th</sup> .hi-purple[percentile] of a distribution is the value that places `$n$` percent of values beneath it

```r
quizzes %>%
  summarize("37th percentile" = quantile(scores,0.37))
```

```
## # A tibble: 1 × 1
##   `37th percentile`
##               <dbl>
## 1              72.3
```

---

# Boxplots I

- **Height of box**: `$Q_1$` to `$Q_3$` (known as .hi-purple[interquartile range (IQR)], middle 50% of data)

- **Line inside box**: median (50<sup>th</sup> percentile)

- **"Whiskers"** identify data within `$1.5 \times IQR$`

- Points *beyond* whiskers are .hi-purple[outliers]
    - common definition: `$Outlier >1.5 \times IQR$`
]
]

]

---

# Comparisons I

- Boxplots (and five number summaries) are great for comparing two distributions

.bg-washed-green.b--dark-green.ba.bw2.br3.shadow-5.ph4.mt5[
.green[**Example**]:

`$$\begin{align*} \text{Quiz 1}&: \{0, 62, 66, 71, 71, 74, 76, 79, 83, 86, 88, 93, 95\}	\\
			\text{Quiz 2}&: \{50, 62, 72, 73, 79, 81, 82, 82, 86, 90, 94, 98, 99\} \\ \end{align*}$$`

]

---

# Comparisons II

```r
quizzes_new %>% summary()
```

```
##     student       quiz_1          quiz_2
##  Min.   : 1   Min.   : 0.00   Min.   :50.00
##  1st Qu.: 4   1st Qu.:71.00   1st Qu.:73.00
##  Median : 7   Median :76.00   Median :82.00
##  Mean   : 7   Mean   :72.62   Mean   :80.62
##  3rd Qu.:10   3rd Qu.:86.00   3rd Qu.:90.00
##  Max.   :13   Max.   :95.00   Max.   :99.00
```
]

]

---

# Aside: Making Nice Summary Tables I

- So I wrote my own `R function` called `summary_table()` that makes nice summary tables (it uses `dplyr` and `tidyr`!). To use:

1. Download the `summaries.R` [file](/files/summaries.R) from the website<sup>.magenta[†]</sup> and move it to your working directory/project folder

2. Load the function with the `source()` command:<sup>.magenta[‡]</sup>

]

```r
source("summaries.R")
```

<sup>.magenta[‡]</sup> If it *was* a package, then you'd load with `library()`. But you can run a single `.R` script with `source()`.]

---

# Aside: Making Nice Summary Tables II

3) The function has at least 2 arguments: the `data.frame` (automatically piped in if you use the pipe!) and then all variables you want to summarize, separated by commas<sup>.magenta[†]</sup>

```r
mpg %>%
  summary_table(hwy, cty, cyl)
```

```
## # A tibble: 3 × 9
##   Variable   Obs   Min    Q1 Median    Q3   Max  Mean `Std. Dev.`
##   <chr>    <dbl> <dbl> <dbl>  <dbl> <dbl> <dbl> <dbl>       <dbl>
## 1 cty        234     9    14     17    19    35 16.9         4.26
## 2 cyl        234     4     4      6     8     8  5.89        1.61
## 3 hwy        234    12    18     24    27    44 23.4         5.95
```

.footnote[<sup>.magenta[†]</sup> There is one restriction: No variable name can have an underscore `(_)` in it. You will have to rename them or else you will break the function!]

---

# Aside: Making Nice Summary Tables II

4) When `knit`ted in `R markdown`, it looks nicer:

```r
mpg %>%
  summary_table(hwy, cty, cyl) %>%
  knitr::kable(., format="html")
```

<table>
 <thead>
  <tr>
   <th style="text-align:left;"> Variable </th>
   <th style="text-align:right;"> Obs </th>
   <th style="text-align:right;"> Min </th>
   <th style="text-align:right;"> Q1 </th>
   <th style="text-align:right;"> Median </th>
   <th style="text-align:right;"> Q3 </th>
   <th style="text-align:right;"> Max </th>
   <th style="text-align:right;"> Mean </th>
   <th style="text-align:right;"> Std. Dev. </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:left;"> cty </td>
   <td style="text-align:right;"> 234 </td>
   <td style="text-align:right;"> 9 </td>
   <td style="text-align:right;"> 14 </td>
   <td style="text-align:right;"> 17 </td>
   <td style="text-align:right;"> 19 </td>
   <td style="text-align:right;"> 35 </td>
   <td style="text-align:right;"> 16.86 </td>
   <td style="text-align:right;"> 4.26 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> cyl </td>
   <td style="text-align:right;"> 234 </td>
   <td style="text-align:right;"> 4 </td>
   <td style="text-align:right;"> 4 </td>
   <td style="text-align:right;"> 6 </td>
   <td style="text-align:right;"> 8 </td>
   <td style="text-align:right;"> 8 </td>
   <td style="text-align:right;"> 5.89 </td>
   <td style="text-align:right;"> 1.61 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> hwy </td>
   <td style="text-align:right;"> 234 </td>
   <td style="text-align:right;"> 12 </td>
   <td style="text-align:right;"> 18 </td>
   <td style="text-align:right;"> 24 </td>
   <td style="text-align:right;"> 27 </td>
   <td style="text-align:right;"> 44 </td>
   <td style="text-align:right;"> 23.44 </td>
   <td style="text-align:right;"> 5.95 </td>
  </tr>
</tbody>
</table>

- We'll talk more about using `markdown` and making final products nicer when we discuss your paper project (have you forgotten?)

---

# Measures of Dispersion: Deviations

- Every observation `$i$` .hi-purple[deviates] from the mean of the data:
`$$deviation_i = x_i-\mu	$$`

- There are as many deviations as there are data points `$(n)$`

- We can measure the *average* or .hi[standard deviation] of a variable from its mean

- Before we get there...

---

# Variance (Population)

- The .hi[population variance `\$(\sigma^2)\$`] of a *population* distribution measures the average of the *squared* deviations from the *population* mean `$(\mu)$`

`$$\sigma^2 = \frac{1}{N}\displaystyle\sum^N_{i=1} (x_i-\mu)^2$$`

- Why do we square deviations?

- What are these units?

---

# Standard Deviation (Population)

- Square root the variance to get the .hi[population standard deviation `\$(\sigma)\$`], the average deviation from the population mean (in same units as `$x$`)

`$$\sigma=\sqrt{\sigma^2}=\sqrt{\frac{1}{N}\displaystyle\sum^N_{i=1} (x_i-\mu)^2	}$$`

---

# Variance (Sample)

- The .hi[sample variance `\$(s^2)\$`] of a *sample* distribution measures the average of the *squared* deviations from the *sample* mean `$(\bar{x})$`

`$$\sigma^2 = \frac{1}{n-1}\displaystyle\sum^n_{i=1} (x_i-\bar{x})^2$$`

- Why do we divide by `$n-1$`?

---

# Standard Deviation (Sample)

- Square root the sample variance to get the .hi[sample standard deviation `\$(s)\$`], the average deviation from the *sample* mean (in same units as `$x$`)

`$$s=\sqrt{s^2}=\sqrt{\frac{1}{n-1}\displaystyle\sum^n_{i=1} (x_i-\bar{x})^2	}$$`

---

# Sample Standard Deviation: Example

.bg-washed-green.b--dark-green.ba.bw2.br3.shadow-5.ph4.mt5[
.green[**Example**]: Calculate the sample standard deviation for the following series:

`$$\{2, 4, 6, 8, 10 \}$$`

]

```r
sd(c(2,4,6,8,10))
```

```
## [1] 3.162278
```

---

# The Steps to Calculate sd(), Coded I

```r
#  first let's save our data in a tibble
sd_example<-tibble(x=c(2,4,6,8,10))

# first find the mean (just so we know)

sd_example %>%
  summarize(mean(x))
```

```
## # A tibble: 1 × 1
##   `mean(x)`
##       <dbl>
## 1         6
```

```r
# now let's make some more columns:
sd_example <- sd_example %>%
  mutate(deviations = x-mean(x), # take deviations from mean
         deviations_sq = deviations^2) # square them
```

---

# The Steps to Calculate sd(), Coded II

```r
sd_example # see what we made
```
]

```
## # A tibble: 5 × 3
##       x deviations deviations_sq
##   <dbl>      <dbl>         <dbl>
## 1     2         -4            16
## 2     4         -2             4
## 3     6          0             0
## 4     8          2             4
## 5    10          4            16
```
]
---

# The Steps to Calculate sd(), Coded III

```r
sd_example %>%
  # sum the squared deviations
  summarize(sum_sq_devs = sum(deviations_sq),
            # divide by n-1 to get variance
            variance = sum_sq_devs/(n()-1),
            # square root to get sd
            std_dev = sqrt(variance))
```
]
.pull-right[

```
## # A tibble: 1 × 3
##   sum_sq_devs variance std_dev
##         <dbl>    <dbl>   <dbl>
## 1          40       10    3.16
```

]

---

# Sample Standard Deviation: You Try

.content-box-blue[
.blue[**You Try**]: Calculate the sample standard deviation for the following series:

`$$\{1, 3, 5, 7 \}$$`

]

```r
sd(c(1,3,5,7))
```

```
## [1] 2.581989
```

---

# Descriptive Statistics: Populations vs. Samples

- **Population size**: `$N$`

- **Mean**: `$\mu$`

- **Variance**: `$\sigma^2=\frac{1}{N} \displaystyle\sum^N_{i=1} (x_i-\mu)^2$`

- **Standard deviation**: `$\sigma = \sqrt{\sigma^2}$`
]

- **Population size**: `$n$`

- **Mean**: `$\bar{x}$`

- **Variance**: `$s^2=\frac{1}{n-1} \displaystyle\sum^n_{i=1} (x_i-\bar{x})^2$`

- **Standard deviation**: `$s = \sqrt{s^2}$`

]
